UV curing lamp for clean rooms

For a supplier of equipment and process solutions for the semiconductor industry, DELO designed the DELOLUX 203 series LED UV curing lamp for clean rooms. It is a new solution based on water cooling and has a wavelength of 365 nm.

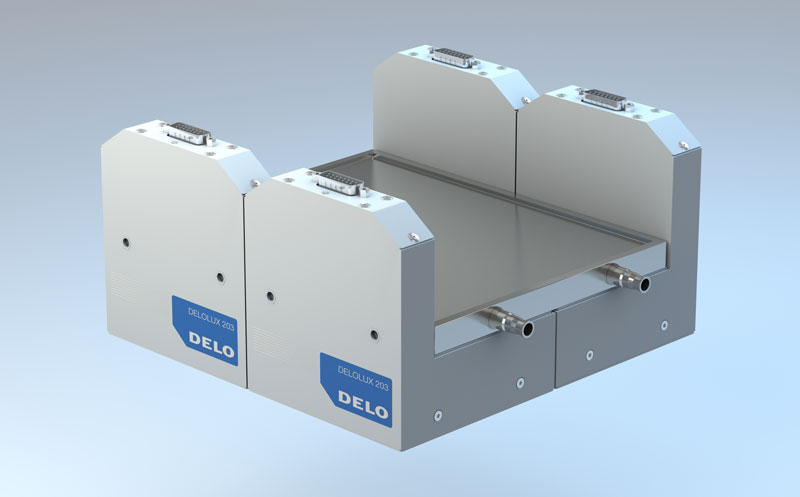

DELO curing lamps feature a modular design and can be adapted to customer-specific requirements. One example is the DELOLUX 203 UV area lamp, which DELO has designed for a supplier of equipment and process solutions to the semiconductor industry for use in clean rooms. The lamp is based on the already proven DELOLUX 20, but works with water cooling instead of air cooling.

Easy integration into production lines

The area lamp is designed for use in a clean room where there can be no influence on the continuous laminar air flow in the room. For this reason, DELO removed the original fan and replaced it with a new external cooling profile based on water cooling. With DELOLUX 203, users benefit from a wavelength of 365 nm. The lamp weighs 1.6 kg without cooling module and measures 112x112x121 mm. It provides an intensity of more than 600 mW/cm² and features plug-and-play connectivity for easy integration into production lines. The intensity progress is constant over the entire irradiation time.
